Molasses Pump – Electric Driven Gear Pump

$0.00

SKU: N/A Category:

Description

  • Available in 4 sizes i.e.
    13mm, 25mm, 35mm, 50mm and (inlet / outlets)
  • Engines are fitted with
    6:1 gear boxes to reduce
    the pumping speed
  • Oversized engines and
    electric motors used to
    handle the mollases
    when cold
  • Available with single
    and three phase electric
    motors
  • Available with electric,
    petrol or diesel drives.
  • Electric or recoil start
    engines
  • Geared down for slow
    running at a nominal 200
    to 400rpm for the higher
    viscosity fluid
  • Heavy duty cast iron gear
    pumps
  • Blind plain bearings
    which are self lubricating
    with the pumped liquid

These positive displacement low inertia pumps are excellent at pumping fluids at low to medium pressures.

Molasses pumps are ideal for cattle supplement feeding or general molasses transfer.

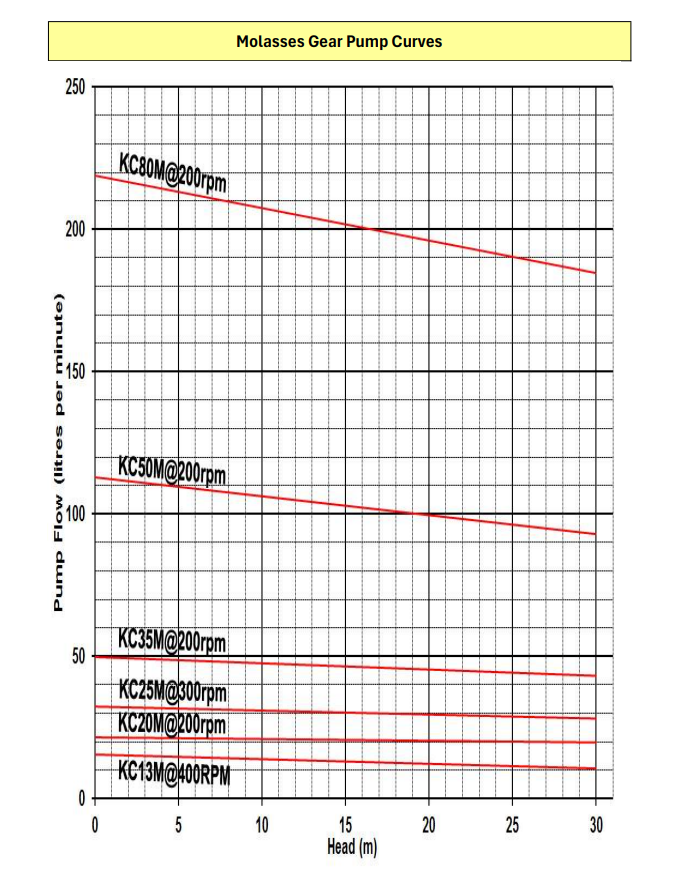

Flows up to 200 L/min and heads up to 30m

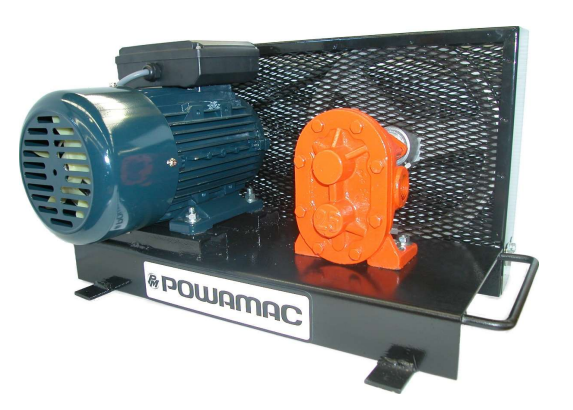

Standard cast iron gear pump with gland packing and steel shaft
mounted on a steel base and connected to a single or 3 phase 4
pole electric motor. These pumps are designed to run at the average
design speed of around 400 rpm.
For pumping molasses we recommend running the pump at
around 200rpm, to this end we also have a range of 8 pole motor driven gear
pump outfits.

For a quote or more information please contact us

















































Additional information

Model

KC13E2-1M, KC25E3-1M, KC25E3-3M, KC35E10-3M, KC50E10-3M
